UnityIIe2023. 4. 11. 08:08

- refactoring : 40%

  - devices: 100%

  - window: 20%

    = console

    = graphic

    = memory

  - merlin: 50%

    = project auto creation

  - tools: 0%



- merlin project

  - DOS

    = RWTS















Posted by GNUPart
UnityIIe2023. 4. 7. 14:48





----------------------------------------------------------
* 6522 x 2ea
----------------------------------------------------------

* Registers

n = slot#
6522-#1.offset = $Cn00
6522-#2.offset = $Cn80

$00 : ORB
$01 : ORA
$02 : DDRB, 1=output bit / 0=input bit
$03 : DDRA, 1=output bit / 0=input bit
$04 : T1CL, Timer1 Counter LowByte
$05 : T1CH, TImer1 Counter HighByte
$06 : T1LL, Timer1 Latch LowByte (not implemented)
$07 : T1LH, Timer1 Latch HighByte (not implemented)
$08 : T2CL, TImer2 Counter LowByte (not implemented)
$09 : T2CH, TImer2 Counter HighByte (not implemented)
$0A : SR, Shift Register (not implemented)
$0B : ACR, Auxllary Control Register
[7:6] Timer1 Control
00 : OneShot (not implemented)
01 : Continuous
[5:0] not implemented ( = %000000 )

$0C : PCR, Peripheral Control Register (not implemented)
$0D : IFR, Interrupt Flag Register
[7] IRQ: 0=clear interrupt / 1=enable interrupt
[6] Time out of Timer1: 0=cleared by read or write T1C.LH / 1= set by time out

$0E : IER, Interrupt Enable Register
$0F : IOA, ORA/IRA no handshake (not implemented)


* Interrupt routine

IFR[6] = 1
IER[6] = 1

OnClock
-> dec. timer1
-> if timer1<=0,
=> set IFR[7] = 1
=> reload timer1
-> if IFR[7]==1
=> send IRQ





----------------------------------------------------------
* AY-3-8910
----------------------------------------------------------

REGISTER
ADDRESS     SOUND PARAMETERS
0        Tone Period Fine Tune        for channel A
1        Tone Period Coarse Tune      for channel A
2        Tone Period Fine Tune        for channel B
3        Tone Period Coarse Tune      for channel B
4        Tone Period Fine Tune        for channel C
5        Tone Period Coarse Tune      for channel C
6        Noise Period (not implemented)
7        Enable
8        Amplitude                    for channel A
9        Amplitude                    for channel B
10       Amplitude                    for channel C
11       Envelope Period Fine Tune (not implemented)
12       Envelope Period Coarse Tune (not implemented)
13       Envelope Shape (not implemented)
14       Unused
15       Unused





- 노이즈, 엔벨로프 기능 아직 미구현

잡음이 있지만, 디버깅용이니까 자기만족.



Posted by GNUPart
Apple ][2023. 4. 7. 13:51
procedure:
 interrupt test -> sound test -> bgm test (interrupt + sound)



65C02 codes with Merlin32, tested on AppleWin

(It can be easily converted to 6502 codes.)

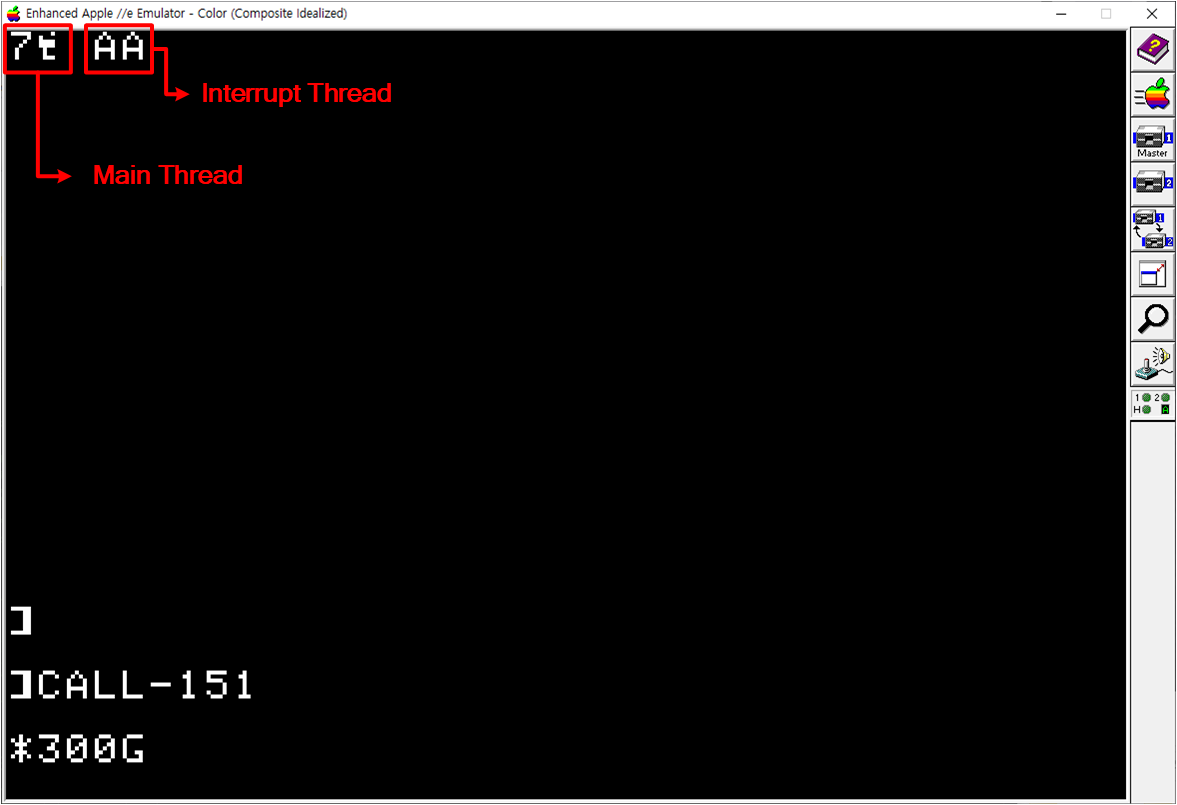

1. 6522 Interrupt test



- mainThread : increases value at testMem[0] and displays values

- intrThread: increases value at testMem[1] and displays values

*-----------------------------------------------
; Init.s : interrupt test
*-----------------------------------------------

            ;use Def.s

            org $300
BANK2_RDROM_WRRAM   = $c081
BANK2_RDRAM_WRRAM   = $c083
BANK1_RDROM_WRRAM   = $c089
BANK1_RDRAM_WRRAM   = $c08b

__RUN       ENT
        LDA BANK2_RDROM_WRRAM ; Double read: Read ROM, write RAM
        LDA BANK2_RDROM_WRRAM ; $D000-FFFF, use bank 1 $D000-DFFF

        LDY #$00  ; ------
        LDA #$00  ; Use Monitor MemCopy to copy
        STA $3C   ; the Monitor ROM $F800-FFFF
        STA $42   ; to RAM at $F800-FFFF in
        LDA #$FF  ; preparation to read/write
        STA $3E   ; $D000-FFFF without it.
        STA $3F   ;
        LDA #$F8  ;
        STA $3D   ;
        STA $43   ;
        JSR $FE2C ;-------

        LDA BANK2_RDRAM_WRRAM ; Double read: Read/Write RAM
        LDA BANK2_RDRAM_WRRAM ; $D000-$FFFF, use bank 2 $D000-DFFF

        ; sets timer 6522
setTimer
        ;sei
        lda #%01000000
        sta $C40B       ; acr = continuous
        lda $00
        sta $C40D       ; ifr
        lda #%11000000
        ;sta $C40D       ; ifr
        sta $C40E       ; ier

        lda #$36
        sta $C404       ; T1C-L
        lda #$4F
        sta $C405       ; T1C-H
        lda #<intrThread
        sta $FFFE
        lda #>intrThread
        sta $FFFF
        ;cli

mainThread
        ldy testMem
        iny
        sty testMem
        ldx testMem+1
        jsr printMem
        ;jsr $F940       ; prints Y and X
        ;lda KEY_RETURN
        ;jsr $FDED
        jmp mainThread

intrThread  ; interrupt thread
        php
        pha
        phx
        phy

        lda #$7f
        sta $C40D       ; clears ifr

        ; thread do here
        ldx testMem+1
        inx
        stx testMem+1
        jsr printMem
        ;ldy testMem
        ;jsr $F940
        ;lda KEY_RETURN
        ;jsr $FDED
        ;

        ply
        plx
        pla
        plp
        rti

printMem
        lda testMem
        and #$0f
        tax
        lda char, x
        sta $401
        lda testMem
        lsr
        lsr
        lsr
        lsr
        tax
        lda char, X
        sta $400

        lda testMem+1
        and #$0f
        tax
        lda char, x
        sta $404
        lda testMem+1
        lsr
        lsr
        lsr
        lsr
        tax
        lda char, X
        sta $403

        rts


testMem     db 00, 00
char        asc "0123456789ABCDEF"





2. AY-3-8910 sound test



- generates C3 tone through channel A

*-----------------------------------------------
; MB.s  : MockingBoard tone test
*-----------------------------------------------


        org $C00

ORB1    = $C400
ORA1    = $C401
DDRB1   = $C402
DDRA1   = $C403

ORB2    = $C480
ORA2    = $C481
DDRB2   = $C482
DDRA2   = $C483

/WriteReg MAC   ; reg#, data
        lda ]1
        sta ORA1
        jsr latch
        lda ]2
        sta ORA1
        jsr write
        <<<



run
        jsr init6522

        ; volume
        /WriteReg #8; #$0f
        ; enable
        /WriteReg #7; #%11111110

        ; tone A
        /WriteReg #0; #$A3
        /WriteReg #1; #$00

        rts


init6522
        lda #$FF
        sta DDRA1
        sta DDRA2
        ;lda #$07
        sta DDRB1
        sta DDRB2

        lda #$FF
        sta DDRA1
        sta DDRA2
        ;lda #$07
        sta DDRB1
        sta DDRB2

        jmp reset

latch
        lda #$07
        sta ORB1
        lda #$04
        sta ORB1
        rts

write
        lda #$06
        sta ORB1
        lda #$04
        sta ORB1
        rts

reset
        lda #$00
        sta ORB1
        lda #$04
        sta ORB1
        rts



3. BGM test



- mainThread : increases value at testMem and displays it

- intrThread: swaps tone between C3 and C4.



*-----------------------------------------------
; BGM.s : BGM test
*-----------------------------------------------

        ;use Def.s

        org $D00

BANK2_RDROM_WRRAM   = $c081
BANK2_RDRAM_WRRAM   = $c083
BANK1_RDROM_WRRAM   = $c089
BANK1_RDRAM_WRRAM   = $c08b

*-----------------------------------------------
;
; assumed that MockingBoard is in slot 4
;
*--------------------------------------
; 6522 registers
*--------------------------------------
; for 6522 #1

; data ports
ORB1    = $C400     ; port B
ORA1    = $C401     ; port A
DDRB1   = $C402     ; data direction mask for port B
DDRA1   = $C403     ; data direction mask for port A

; interrupt controls
ACR     = $C40B     ; auxiliary control register
IFR     = $C40D     ; interrupt flag register, clears interrupts by clearing bit7
IER     = $C40E     ; interrupt enable register

; timer1 registers
T1CL    = $C404     ; timer1 counter low
T1CH    = $C405     ; timer1 counter high

; for 6522 #2
ORB2    = $C480
ORA2    = $C481
DDRB2   = $C482
DDRA2   = $C483

*--------------------------------------
; ay-3-8910 registers
*--------------------------------------
ATonePeriodL    = $00       ; channel A tone period, low byte
ATonePeriodH    = $01       ; channel A tone period, high 4bits
MixerControl    = $07       ; channel enable/disable
AVolume         = $08       ; channel A amplitude control

*--------------------------------------
; ay-3-8910 commands
*--------------------------------------
CMD_Latch       = $07       ; selects a register (=latch)
CMD_Write       = $06       ; writes to a register
CMD_Inactivate  = $04       ; inactivates data port
CMD_Reset       = $00       ; clears all register and reset ay-3-8910

StartBGMTest    ENT
        ;
        ; this moves monitor rom to high ram
        ;
        LDA BANK2_RDROM_WRRAM ; Double read: Read ROM, write RAM
        LDA BANK2_RDROM_WRRAM ; $D000-FFFF, use bank 1 $D000-DFFF

        LDY #$00  ; ------
        LDA #$00  ; Use Monitor MemCopy to copy
        STA $3C   ; the Monitor ROM $F800-FFFF
        STA $42   ; to RAM at $F800-FFFF in
        LDA #$FF  ; preparation to read/write
        STA $3E   ; $D000-FFFF without it.
        STA $3F   ;
        LDA #$F8  ;
        STA $3D   ;
        STA $43   ;
        JSR $FE2C ;-------

        LDA BANK2_RDRAM_WRRAM ; Double read: Read/Write RAM
        LDA BANK2_RDRAM_WRRAM ; $D000-$FFFF, use bank 2 $D000-DFFF

init6522
        ;
        ; initializes 6522 data ports
        ; we will only use a 6522 #1
        ;
        lda #$FF
        sta DDRA1       ; port A to output 8bits
        lda #$07
        sta DDRB1       ; port B to output low 3bits

init8910
        ;
        ; initializes 8910
        ; we will only use channel A tone
        ; /Write macro is defined below
        ;

        ; sets channel A vol. to max (=15)
        /Write #AVolume; #$0f

        ; enables channel A with tone usage
        /Write #MixerControl; #%11_111_110

        ; initial tone to C3 (=$01_E8)
        /Write #ATonePeriodL; #$E8
        /Write #ATonePeriodH; #$01

setTimer
        ; sets timer1 interrupt to continuous mode
        lda #%01000000
        sta ACR

        ; clears all intterupt flag
        lda #$00
        sta IFR

        ; enable intterupt for timer1
        ; bit7 = mask for all, bit6 = timer1 enable
        ;  -> timer1.enable= bit7 & bit6
        lda #%11000000
        sta IER

        ; sets timer1 counter to 60Hz
        ; 1022730 / 60 = 17030 cycles
        ;  -> timer1 = 17030 - 2(?) = $4284
        lda #$84
        sta T1CL
        lda #$42
        sta T1CH

        ; sets IRQ vector to intrThread
        lda #<intrThread
        sta $FFFE           ; IRQ vector low
        lda #>intrThread
        sta $FFFF           ; IRQ vector high


mainThread
        *--------------------------------------
        ; main thread
        ;
        ; increases value in testMem
        ; and displays it
        *--------------------------------------
        inc testMem
        jsr displayMem
        jmp mainThread      ; continue this

intrThread
        *--------------------------------------
        ; intterupt thread
        ;
        ; generates BGM ( or sound )
        ; tone C3 <--> C4
        *--------------------------------------
        ; pushes registers, php is not required (done by irq)
        pha
        phx ; for 6502, use: txa, pha
        phy

        ; clears 6522 interrupt flag
        lda #$7f
        sta IFR

        ;
        lda intrFrame
        inc
        sta intrFrame
        and #$0f        ; changes per 16 frames
        bne :exit
        lda #$10
        bit intrFrame
        beq :toneC3
        ;
        ; intrFrame++
        ; if ((intrFrame&0xf)==0) { // per 16 frames
        ;     // changes tone
        ;     tone = intrFrame&0x10==0? C3 : C4
        ; }
        ;


:toneC4 ; C4 = $00_F4
        /Write #ATonePeriodL; #$F4
        /Write #ATonePeriodH; #$00
        bra :exit

:toneC3 ; C3 = $01_E8
        /Write #ATonePeriodL; #$E8
        /Write #ATonePeriodH; #$01

:exit
        ; pulls registers
        ply
        plx
        pla
        rti


*--------------------------------------
; 8910 command routines
;  sequence: Command -> Inactivate
*--------------------------------------
aySelectReg ; input: A = register index
        sta ORA1        ; sends register index to portA (= 8910 data port)
        lda #CMD_Latch
        sta ORB1        ; sends latch command to portB (= 8910 command port)
        ; selects a register whose index is in ORA

        lda #CMD_Inactivate
        sta ORB1        ; sends inactivate command
        rts

ayWriteToReg ; input: A = data to write
        sta ORA1        ; sends data
        lda #CMD_Write
        sta ORB1        ; sends write command
        ; writes a data in ORA to currently selected resgister

        lda #CMD_Inactivate
        sta ORB1        ; sends inactivate command
        rts

ayReset ; resets 8910
        lda #CMD_Reset
        sta ORB1
        lda #CMD_Inactivate
        sta ORB1        ; sends inactivate command
        rts

;
; writing macro for 8910 register
;
/Write  MAC     ; /Write regIndex; data
        lda ]1
        jsr aySelectReg
        lda ]2
        jsr ayWriteToReg
        <<<



*--------------------------------------
; simple display routine
*--------------------------------------
displayMem
        lda testMem
        and #$0f
        tax
        lda char, x
        sta $401
        lda testMem
        lsr
        lsr
        lsr
        lsr
        tax
        lda char, X
        sta $400
        rts

intrFrame   db 00
testMem     db 00
char        asc "0123456789ABCDEF"
